Adding Floor Drains

Once you’ve completed your plumbing plan, the final step is to add floor drains to your design. Adding floor drains is as simple as a mouse click.


Below are some references that may be useful as you design
Elevating Objects, Moving a Selection, Nudging a Selection

To add a floor drain

1 Choose the Floor Drain button img from the Plumbing Tools group.

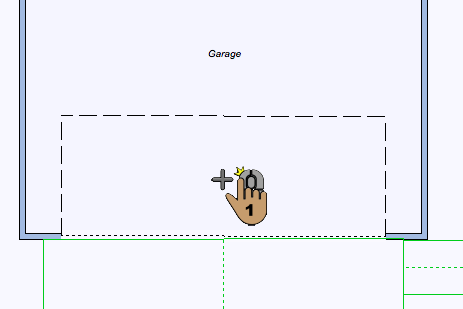

Use the Click Once to Place drawing method to place the floor drain in your design

img img
