Dimension Angle

Toolbox Icon:


Creates dimensions of angles.

Several options are available in the Dimension Angle window:

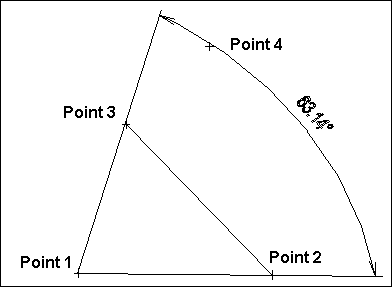

If 3 point is checked, the dimension will be created using these points:

Point 1: Center of the angle to be measured

Point 2: Beginning of the angle

Point 3: Endpoint of the angle

Point 4: Distance at which the dimension text is to be inserted


If Assoc is checked, the dimension will be created by setting points on two lines.

NOTE: The options available in this command are the same ones available in the Dimension command. You can also set dimension parameters globally in the program Options.
