Attributes and BOM


The Bill of Materials tools provide a means to apply custom attributes to entities and display that data in a table or export it to an external application such as Microsoft Excel.

There are twelve predefined attribute templates that come with the program. These templates are:


Calculates the surface area of any polygon, surface or solid.

Area 2D

Calculates the 2D area and centroid properties for curves.


Assigns markups to an entity

Mass Properties

Calculates the mass properties for solids. (Uses material assigned in Verify: Mass Properties command.)


Assigns a material to an entity.


Calculates the 2D perimeter for curves.


Assigns a price to an entity.


Assigns part number and description to an entity.

Stock Size

Assigns part number, stock size, and description to an entity.

Vender No.

Assigns part and vendor number, and description to entity.


Calculates the volume of a solid.


Calculates the weight of a solid. (Uses material assigned in Verify: Mass Properties command.)

Some of the templates automatically extract attribute information from the entity, others require the user to supply the information associated with the attribute. Any editable fields should be filled in manually.

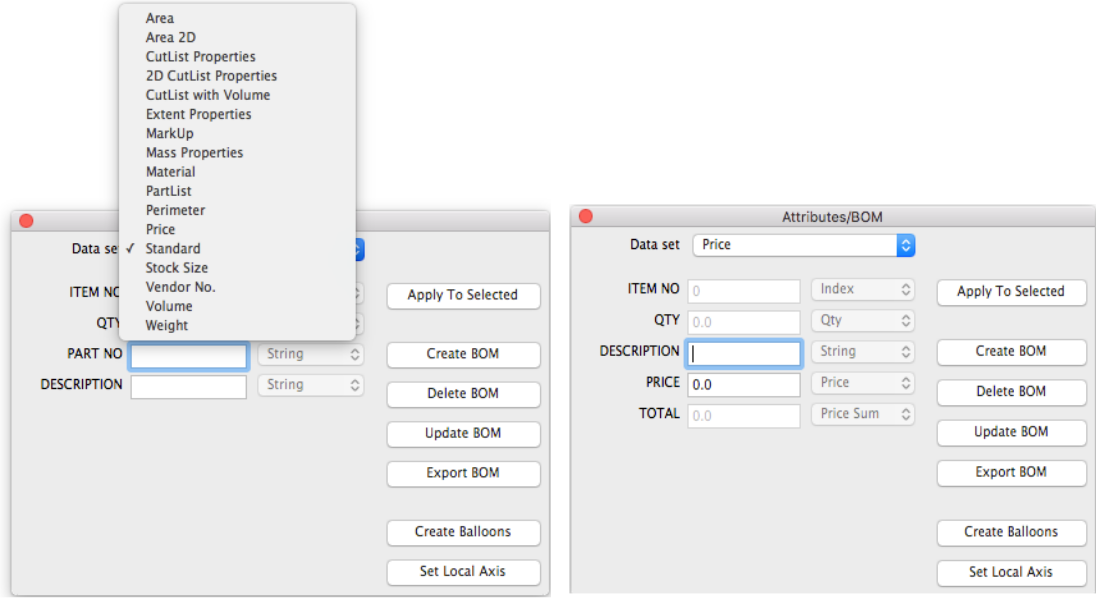

The BOM dialog box has four button options for applying attributes, creating a Bill of Materials table, assigning balloon items, and exporting the attributes to a text delimited file.

Apply to Selected

This button option applies the current BOM attribute to the selected entities.

Create BOM

This option creates a Bill of Materials Table using the current set of attributes defined by the pull-down menu. The user is prompted to enter the text height, column width, and item order.

This option creates a Bill of Materials Table using the current set of attributes defined by the pull-down menu. The user is prompted to enter the text height, column width, and item order.


Items Numbers Down


Items Numbers Up

Weight and Volume Tables

Whether you’re designing an aircraft, automobile, or picnic table, weight is key control parameter in a design. V15 introduces a new Bill of Material (BOM) attribute specific for creating a summed weight table. Creating a weight table is based on the designer assigning a material using the Verify: Properties dialog box followed up by applying a weight attribute. With just these two steps, designers can create an accurate Weight table used to explore impacts of material types on design weights.

Highlights of the Weight BOM tool:


Precisely calculates the volume of any NURB or analytic based part .


Apply a material from a large selection of predefined materials for woods, plastics, and metals. Or add your new material to the list. Provides a total weight value for the objects in the table.

Associative Parts and Tables:

Changing a part size(volume) or applying a different material will automatically update the table for quick design exploration that impact weight calculations.

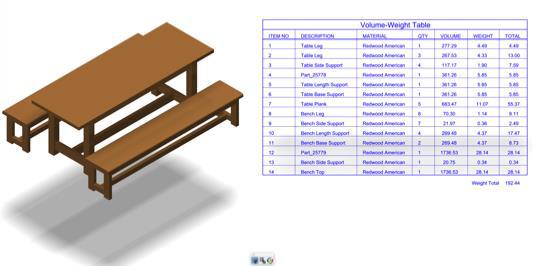

Bill of Materials: Weight Table

Using the BOM Tool to create a Weight/Volume Table

  • Select the Attributes and BOM tool from the Window menu .

  • Select the Weight & Volume Table from the Attribute pull down.

  • Select a solid entity that you want to attach an attribute.

  • Select Apply to Selected.

  • Repeat until all solids have desired attribute attached.

  • Select Create BOM

  • Select table attributes such as text size and click OK

  • Table is created in the current work plane

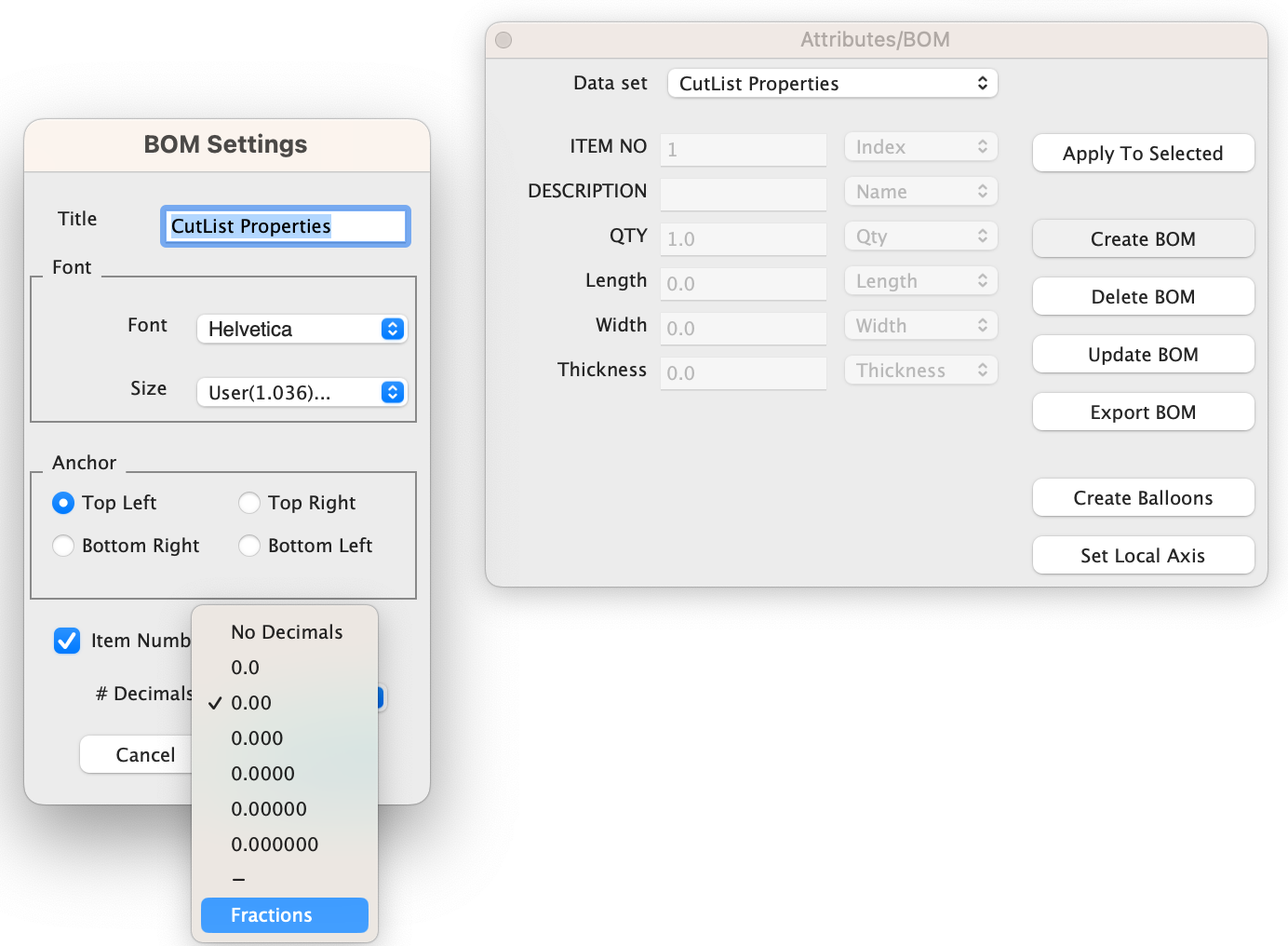

###### BOM with Fraction Option

The Bill of Material Create table feature has a new option to support fraction measurements. To use this feature, select the Attributes and BOM dialog box from the Tools menu. Select your objects and associated a data set such as CutList properties.

Apply to Selected. Now select the Create BOM option to create a table. In the BOM Settings dialog box, select the Decimals pull down option. And then Select Fractions to display measurements as factions of feet and inches.

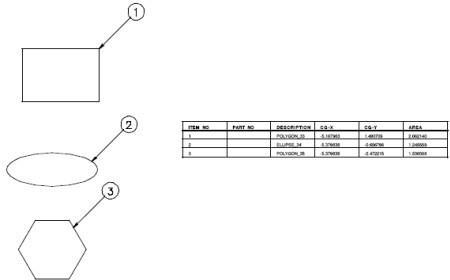

Create Balloons

Clicking the Create Balloons button will add balloon item dimensions to the geometry. This requires an item number type be used with the attribute. All of the supplied attribute files have item numbers.


Export BOM

The Export BOM option creates a comma delimited file that can be read into Microsoft Excel or other similar spreadsheets.

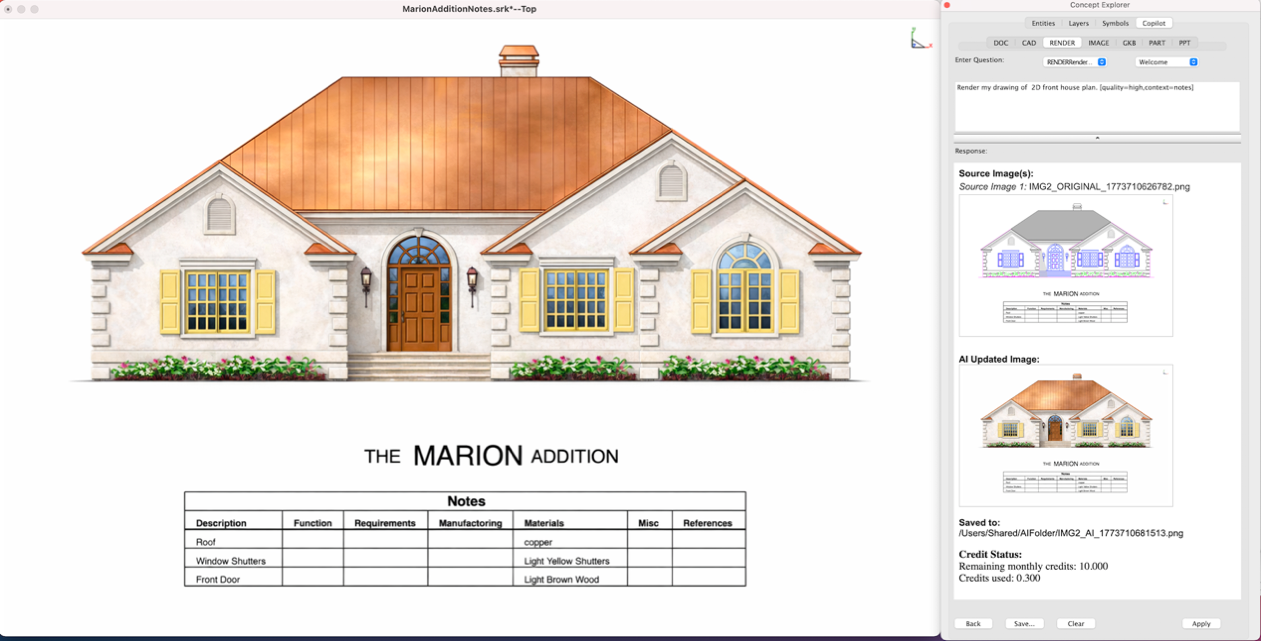

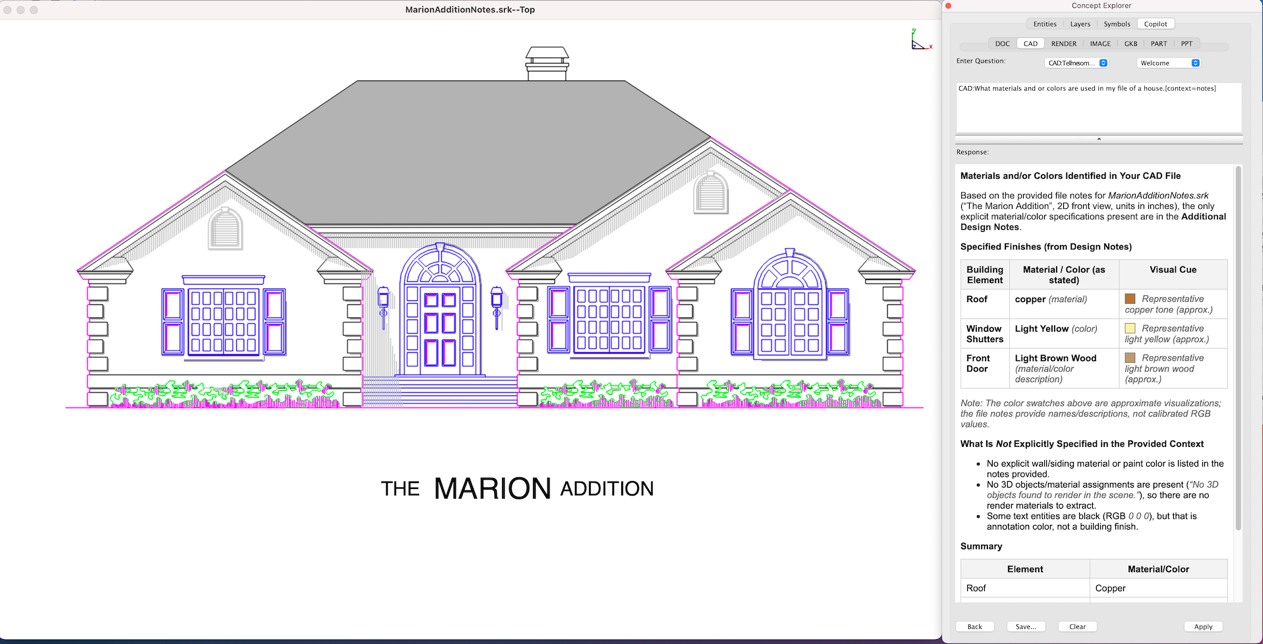

User Defined Templates

You can create user-defined templates by creating an attribute definition file. Attribute definition files are located in the BOM folder found in the standard install directory. The first line of the file contains the attribute name. This is the name that will appear in the attribute pull-down menu. The next line contains two columns. The first column contains the attribute definition string, and the second, the attribute type. A comma separates the two columns. The following attribute types are supported:


User-assigned signed decimal value.


User-assigned signed integer value.


User-assigned character string.


Calculates the entity area and assign.


Calculates the entity perimeter and assign.


Calculates the entity volume and assign.


Calculates the entity weight and assign.


Counts the number of occurrences this attribute is used.


Index used to refer to the attribute in the BOM table or ballooncallout.


Extracts the name from the entity.


Calculates the CG-X value from an entity.


Calculates the CG-Y value from an entity.


Calculates the CG-Z value from an entity.


Calculates the sum of the previous attributes.


Extracts the material type from the entity.

Below is an example file for a user-defined attribute:


ITEM NO, index

QTY, qty

NAME, name

MATERIAL, string
