Text-Numbering
Default UI Menu: Draw/Text/Text Numbering

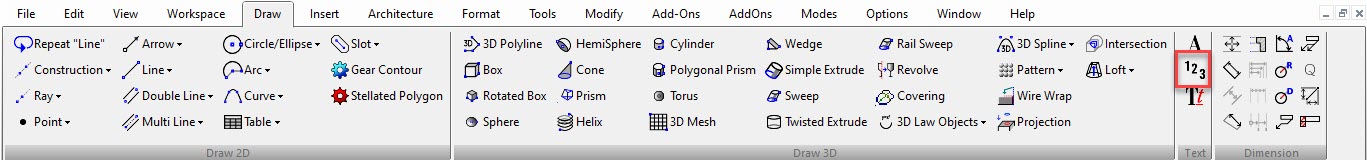

Ribbon UI Menu:
Text Numbering allows the selection of multiple text entities, enabling the choice of a starting number and an increment. The text can be prefixed or suffixed with auto-numbering, or the auto-numbering can replace the existing text. This feature is particularly useful for counting numerous items, such as parking places. By copying a single text entity into each parking place, then selecting all the text and applying auto-numbering, each parking place can be efficiently counted.
Enabling this tool allows for the selection of multiple text entities and the generation of numbering, which can be sorted by X, Y, or Order.
To generate Text Numbering:
- Enable Text Numbering from menu
- Select multiple Text entities with Shift Key
- Choose the desired sorting and placement order from the Inspector Bar or Local Menu
- Select Finish. Text is Auto-numbered

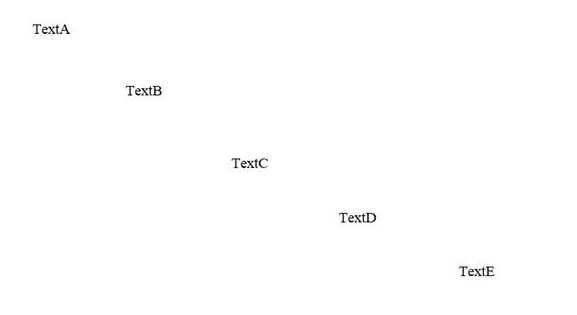

Before Numbering:

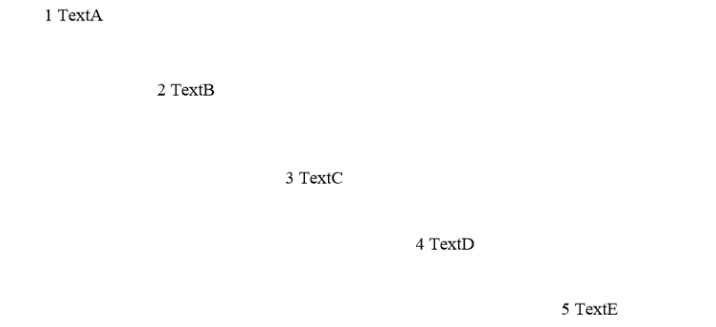

After Numbering:
Local menu options:
Sort
Sort by X: Generates text numbering according to the 1st to last entity appearing in x-axis.
Sort by Y: Generates text numbering according to the 1st to last entity appearing in y-axis.
Sort by Order: Generates text numbering according to the 1st to last entity being selected by the user.
Placement
Overwrite: Overwrites the text with the text numbering.
Prefix: Adds text numbering before the original text.
Suffix: Adds text numbering after the original text.
Find & Replace: Finds the text written in "Find" and replaces it with the chosen numbering format. The format can be changed, by default its (representing number). It can be changed via "Format" in Inspector Bar.
Additional Inspector Bar Options:
Start: Sets the starting number value in the sequence of text which will be auto-numbered
Step: Sets the incrementing number amount for each, subsequent text item being numbering/text-numbering-2020-04-22-1.png)
