Exporting Point Clouds

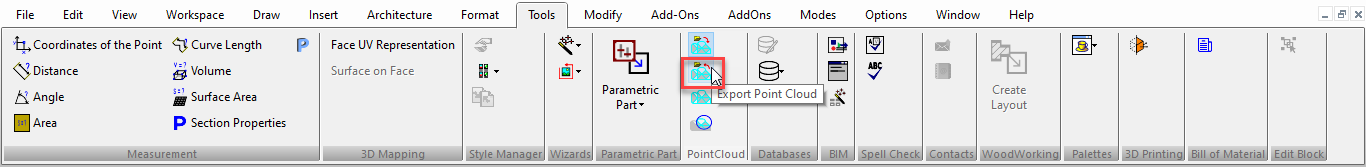

Default UI Menu: Tools/Point Cloud/Export Point Cloud

Ribbon UI Menu:


To Export a point cloud:

  1. Select the Export Point Cloud tool

  2. Click on the point cloud to be exported.

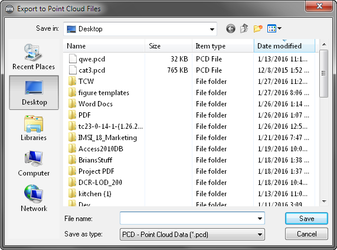

  3. From the file dialog, select a name and location for the file. (Only *.PCD is supported ) img

  4. Click Save. The point cloud will be saved.

  5. Repeat step 3 and 4 as many times as needed. Press ESC to drop the tool
