Point Move


Shortcut Key: * (asterisk)

Moves a point in the drawing.

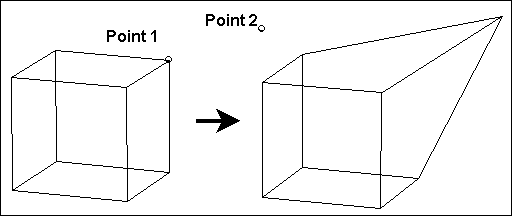

Point 1: Set a point on the point to be moved

Point 2: Set a point for the new location of that point

Every entity in the drawing containing the first point will be redrawn using the second point.
