Command Assistant

The Command Assistant interprets natural language requests entered into the Command Assistant field and delivers immediate, context-aware guidance directly within the Copilot Palette.

As requests are typed, such as creating geometry, modifying shapes, locating tools, or learning workflows - the Command Assistant analyzes the intent and dynamically presents the most relevant commands, help topics, and related suggestions without interrupting the active design process.

This integrated workflow helps streamline access to TurboCAD functionality, reduces time spent navigating menus and toolbars, and keeps focus centered on the current modeling task.

The Command Assistant is available through the dedicated Command Assistant toolbar.

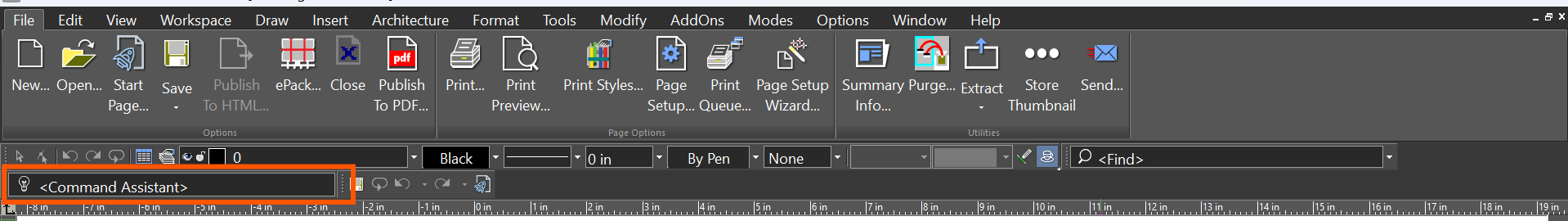

When activated, it located just below the property toolbar.

The Command Assistant is available through the dedicated Command Assistant toolbar.

Below are the steps to enable and use the Command Assistant in TurboCAD:

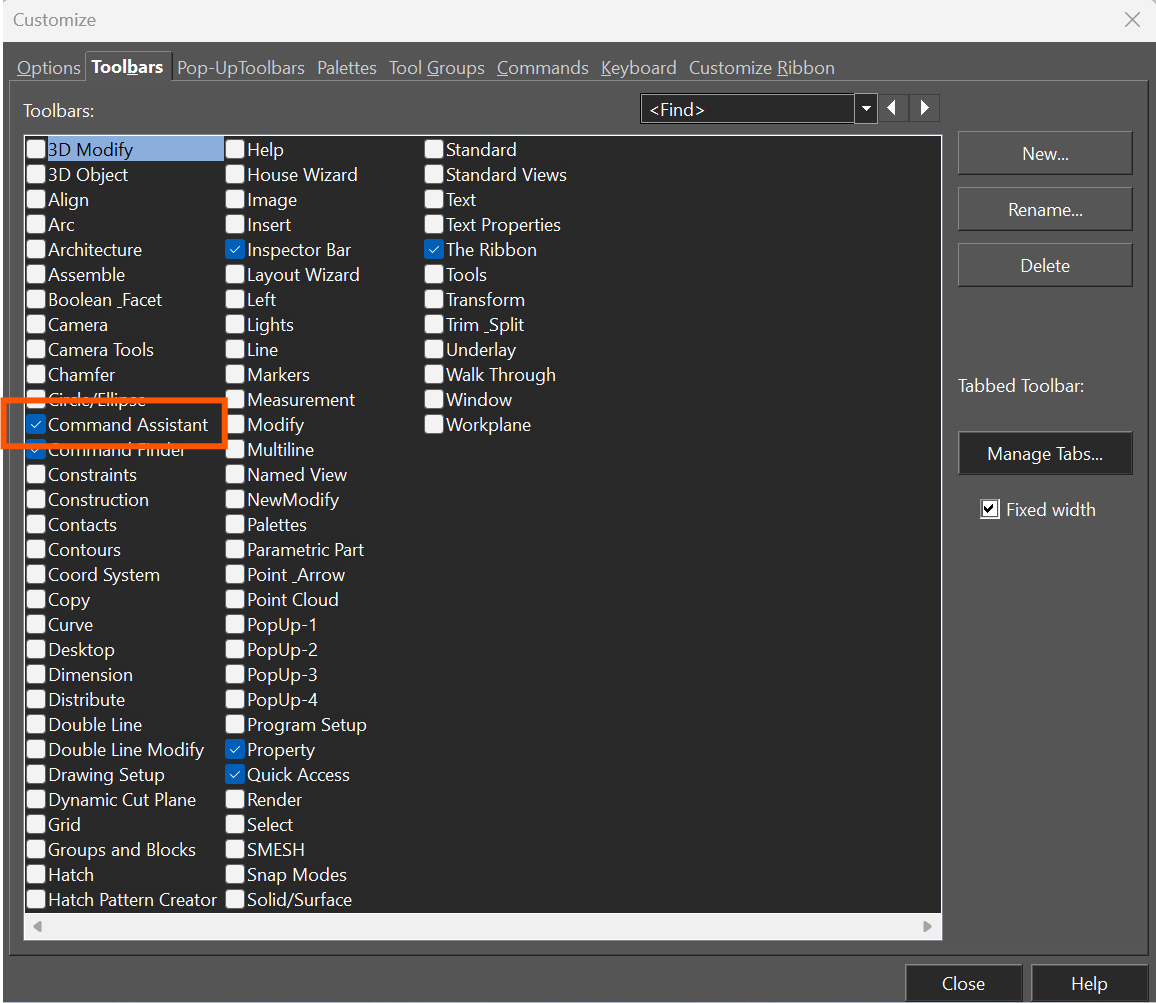

1. Enable Command Assistant from the available toolbar options.

2. Ensure the Copilot Palette is open.

3. Click inside the Command Assistant field.

4. Enter a natural language request.

Example:

• “How can I draw curve”
• “How to create a lofted surface”

• “Modify a selected solid”

• Press Enter.

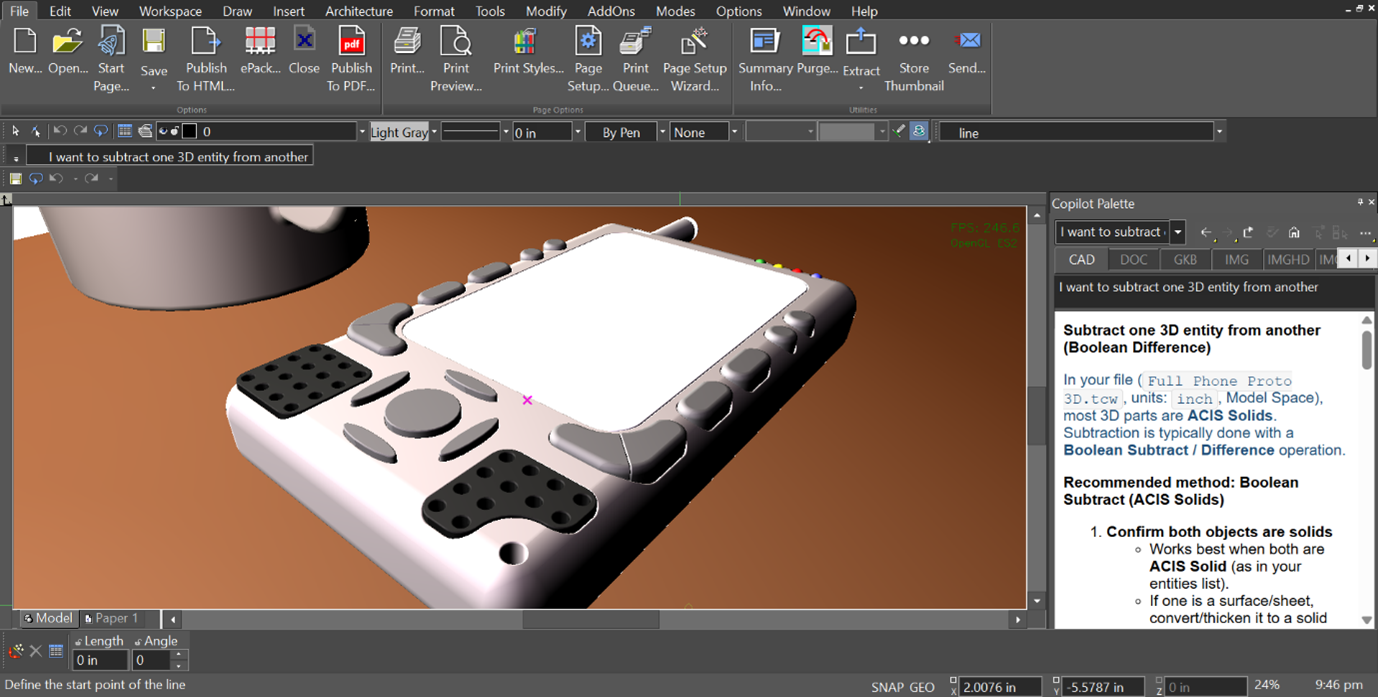

• The Copilot Palette automatically displays related guidance, commands, and workflow suggestions associated with the entered request.
